Electrical Contact for Air-condition Product Information, Electric Contact Rivet for Air-condition

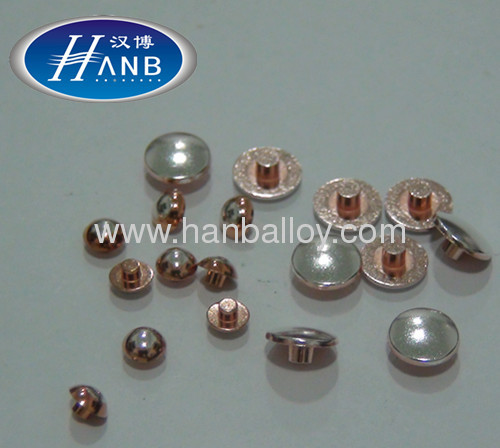

AgCdO/Cu bimetal rivet contact for Air-condition includes AgCdO10, AgCdO12, AgCdO15, and this kind of electrical contact has one of the most important materials in silver - metal oxide contact material. The fine CdO gives the contact special properties. When the temperature is above900oC, CdO sublimes, which cools the contactor surface and reduces arc energy and extinguishments. In addition, existence of cadmium oxide will improve the welding resistance of the contactor. Its typical applications include low voltage contactors, relays, automatic switch flash relays, auxiliary switch series, timers, starters, breakers and leakage protective switches.

The oxide of AgZnO rivet and AgZnO/Cu bimetal rivet is more thermally stable than CdO. Because of the higher stability of ZnO and AgZnO, the contact material increases the contactor resistance, which would be compensated through structural means, such as a higher contacting force.

AgSnO2 and AgSnO2 In2O3 Electric Contact Rivet for Air-condition:
AgSnO2 and AgSnO2In2O3 are the ideal environment-protecting materials for substituting AgCdO. Since SnO2 has better thermal stability and higher hardness than CdO, AgSnO2 and AgSnO2 In2O3 is higher and it is more difficult to processing these two materials

Working Layer Materials of Electrical Rivet Contact  is AgSnO2In3O3, AgSnO2, AgNi, AgCdo, PAg, FAg, AgFe

Electrical Rivets for Air-condition is widely applied in low voltage electrical appliances, such as Contactor, Relay, Starter, Voltage Controller, Automobile, Circuit Breaker, Thermostats, Intelligent Switches etc

Ningbo Hanbo Precious Alloy Co., Ltd. we are the manufacturer of silver based electrical contact materials, contact rivets and contact assemblies. We has already adopted the Management System Certification of ISO/TS16949:2009, ISO9001:2008 and ISO14001:2004. Our goal is to become a well-known company, the leading manufacturer of electrical and electronic materials in the world, and for the sustainable development of human society to contribute a force.

The quotation Air-condition Bimetal Rivet Contact is changeable based on the adjustment of the Silver price.
