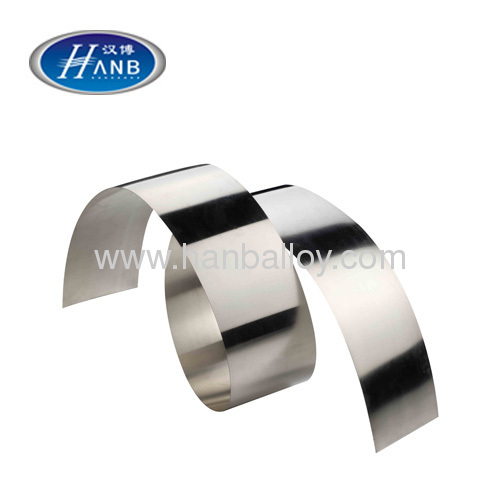

Sliver Alloy Strip for Switch

Product Information
Electrical Contact Strips; Electrical Precious Metals Clad Strips; Electrical Silver Alloy Strips, Clad Metal Strips, Electrical Metal Cladding Strips; Electrical Silver Alloy for Switch

1. Feature:
Precious metals clad on strips of copper and silver based alloys. Multi-layer and multi-strip tapes of variable widths and thicknesses are produced using hanbo's own unique continuous bonding process. These materials demonstrate the highest level of performance while utilizing a minimum amount of precious metals. High bonding strength allows a high degree of bending. We supply a long length tapes with a high precision finish.

2. Working Layer Mterials:AgSnO2In3O3, AgSnO2, AgNi, AgCdo, PAg, FAg

3. Cladding Materials:Ag, Cu

4. Application Fields:
A variety of micro-motor brush and commutator, micro-swithches, contactors, relays, connectors, tuner, and other electronic components. Available in a wide range of thicknesses, from 0.3mm~5mm of total thickness, and the range of width from 5mm~80mm.

Welcome OEM designs and manufacture

compound strip,Silver Alloy strip
Features:
(1) Pure silver has extremely high electrical conductivity
(2) Very low contact resistance
(3) Easy to solder
(4) It is easy to produce, so silver is an ideal contact material
(5) It is one of the most widely used materials in small capacity and voltage

AgNi wire:
Features:
(1) AgNi contact material contains 10% to 40% Ni
(2) Produced by powder metallurgical production, with low and stable contact resistance, high hardness and mechanical strength
(3) Material transfer in case of DC is very low
(4) High electrical and thermal conductivity
(5) With very low arc erosion. On making higher current, normally asymmetric pairs
with AgC contact materials are applied
(6) Wire of solid and composite rivets produced by powder sintering-extruding
methods
